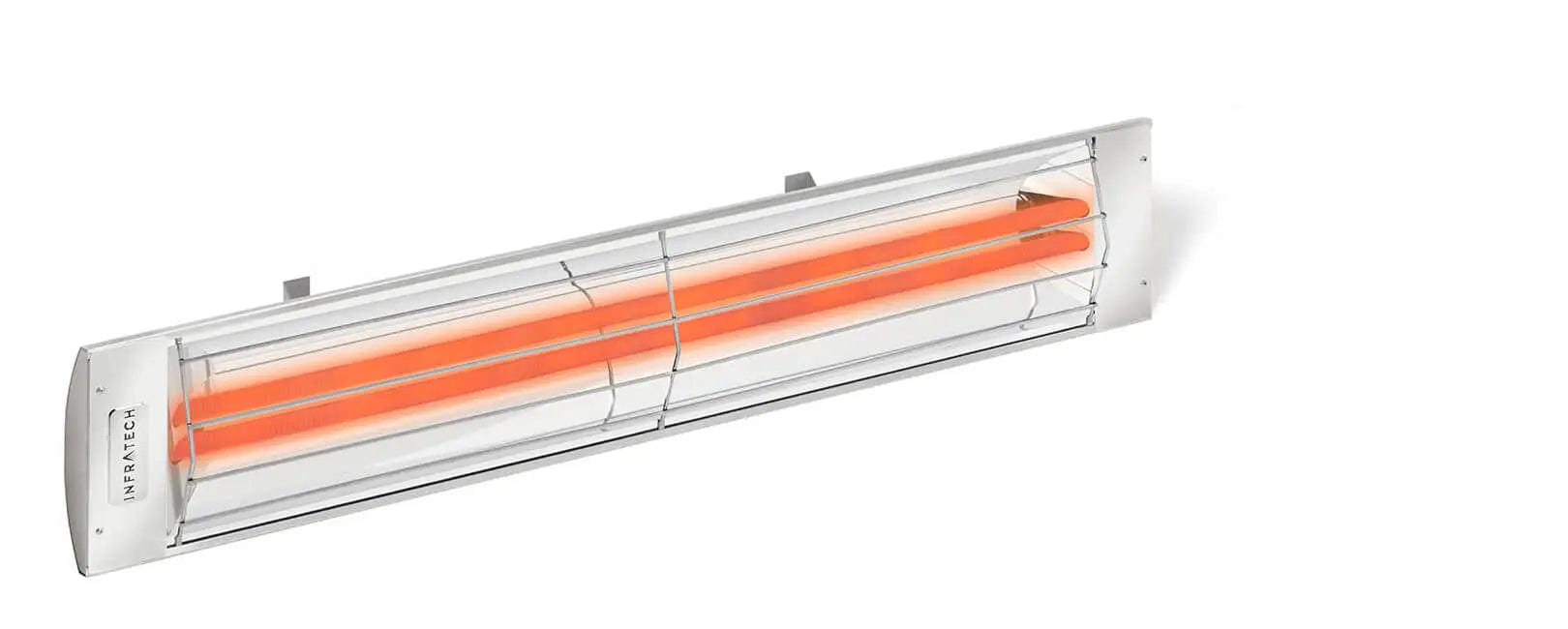

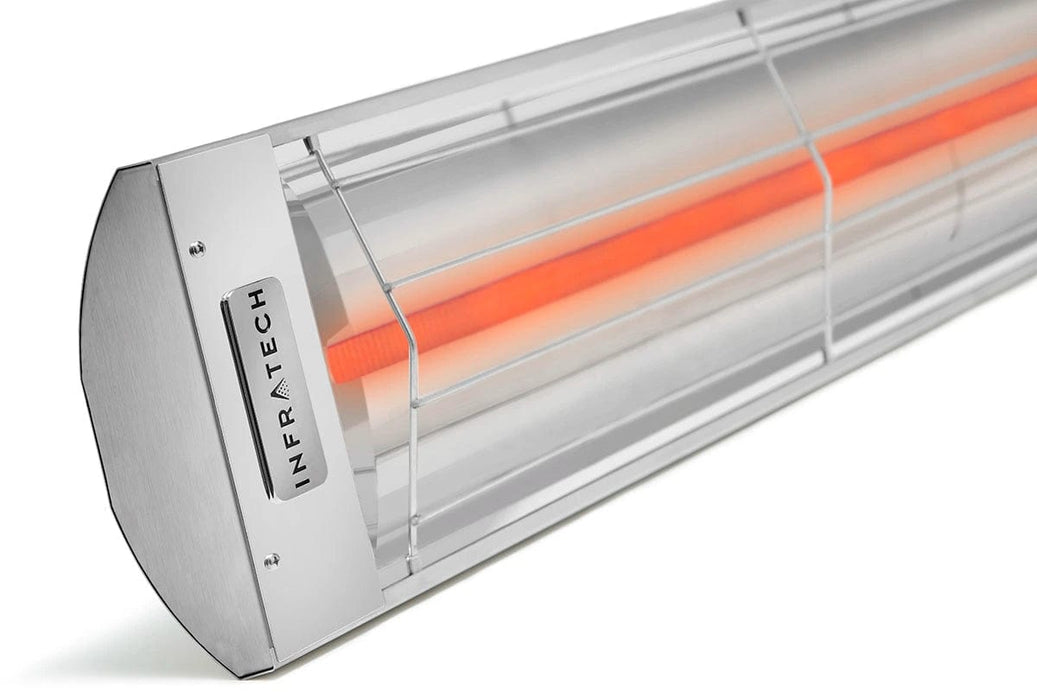

Infratech CD-3024 33-inch Stainless Steel All-Weather Dual Element Heater - 240V

CD-Series Dual Element Heaters

The CD Series fixtures are designed for mounting heights of 7 to 12 feet. They feature durable 304 stainless steel construction and inset mounting brackets that create a “floating” effect when mounted. This effect may be useful in a green or creative space where heat losses are undesirable. The fixtures typically have our custom controls with variable settings to accommodate a wide range of conditions and applications.

Features

• Our powerful dual-element CD-Series fixtures provide concentrated heat for larger scale applications in high visual impact locations. Designed for mounting heights of 7-12 feet.
• Features Include: durable 304 stainless steel construction, recessed installations, and inset mounting brackets that create a “floating” effect when mounted.
• Choose from 3,000-6,000 watt and 208-480 volt capacities.
• Typically installed with our custom controls, to vary the electric load for comfortable heat in a wide range of conditions.
• May also be installed with Duplex/Stack Switches for effectively a half-power or full-power option.

Manuals

• Comfort Heat Catalog for Infratech CD-3024 33-inch Stainless Steel All-Weather Dual Element Heater - 240V
• Installation Guide for Infratech CD-3024 33-inch Stainless Steel All-Weather Dual Element Heater - 240V
• Heater Drawing for Infratech CD-3024 33-inch Stainless Steel All-Weather Dual Element Heater - 240V
• C-Series and W-Series Comparison

Specifications

• Part No.: 21-4000
• Model: CD-3024
• Length: 33"
• Watts: 3000

• Volts: 240
• Amps: 12.5
• BTU's: 10236
• Ship Weight: 13 lbs.

Coverage Area

• Different spaces have different needs. You may require multiple heaters in order to properly heat the areas noted below. Contact us to learn which model is right for you. To find out more about which heating solution is right for your needs, our pleasure to help you.

• CD-30  7' x 7' (ft) - 7' - 8' mounting height
• CD-40 8' x 10' (ft) - 8' - 10' mounting height
• CD-50  9' x 10' (ft) - 8' - 10' mounting height
• CD-60  11' x 11' (ft) - 8' - 12' mounting height

Note: Indoor or well-protected environments will generally exceed average coverage areas. Heaters can provide less than average coverage in extremely cold/windy conditions.

Mounting Options

• Infratech is the only outdoor comfort heat manufacturer to offer five distinct mounting choices — for the widest range of options in the industry. Our low profile heaters are suitable for outdoor installations and offer a pleasing, streamlined look due to low clearance requirements. Infratech heaters may be flush mounted into a non-sloped ceiling using our optional flush mount frame, may be mounted to a high, vaulted or uneven ceiling using our Drop Pole installation, or may be mounted to a wall, ceiling or pole mounted. C-Series heaters are ideal for wall, ceiling or Drop Pole Mount applications.

Color Options

C-Series heaters are available in a range of colors, to coordinate with your environment. Choose from brushed stainless steel or eight standard color finish options.

• White

• Biscuit

• Almond

• Beige

• Bronze

• Black

• Copper

• Grey

Control Options

Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.

• Duplex/Stack Switch

• Solid State Control Packages

• Home Management Systems

• Universal Control Packages
