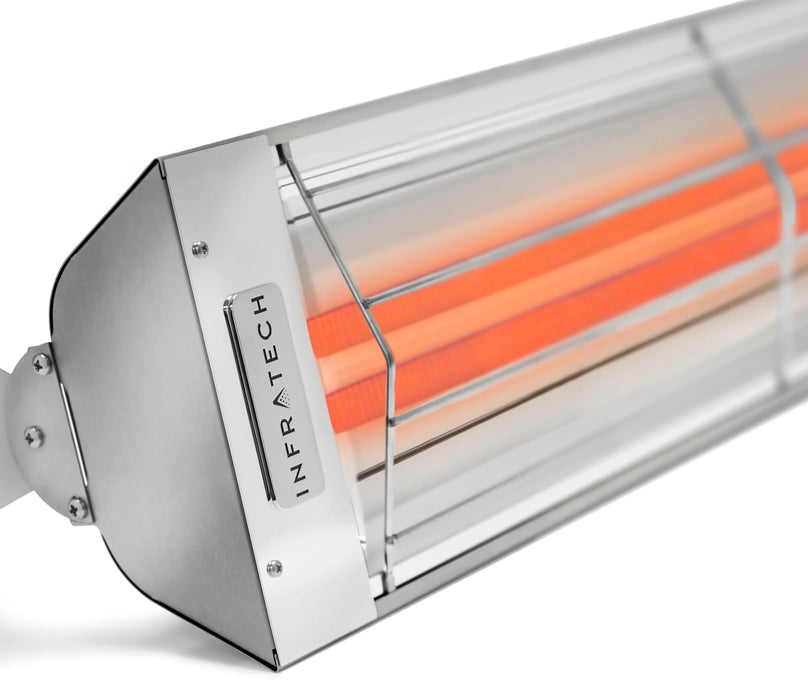

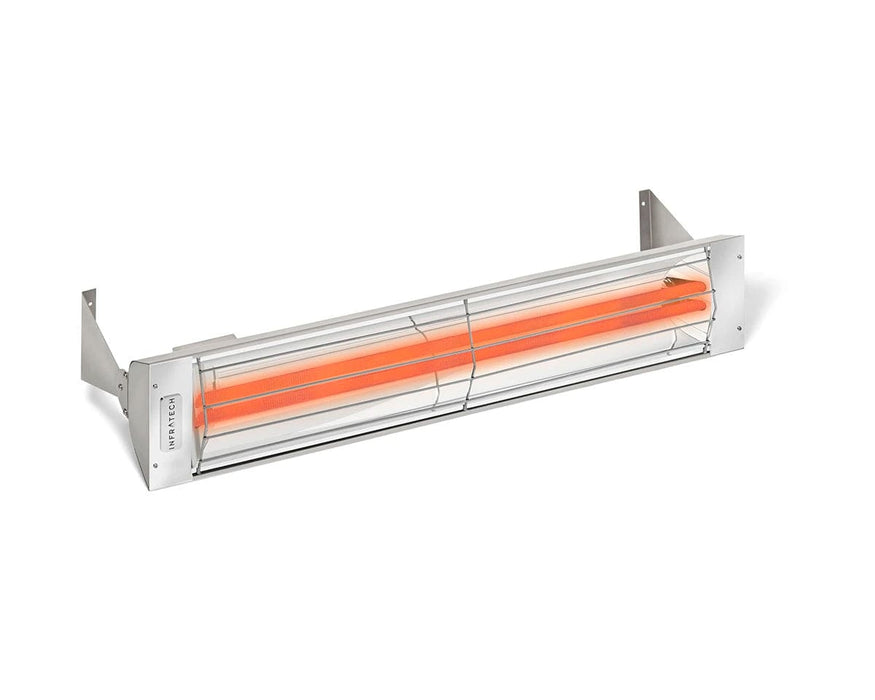

Infratech WD-5024 39-inch Stainless Steel All-Weather Dual Element Heater - 240V

WD-Series Dual Element Heaters

Our classic W-Series fixtures are ideal for most basic installations. Our products are built to deliver comfort and convenience – which is why they’re compatible with the latest trends in home automation technology. W-Series features include minimal clearance requirements, recessed mounting options, short standoffs and mounting heights between 7-11 feet.

Features

• Our classic W-Series fixtures are ideal for most basic installations.
• Features include: durable 304 stainless steel construction, minimal clearance requirements, recessed mounting options, short standoffs and mounting heights between 6-10 feet.
• Choose from 1,500-4,000 watt and 120-480 volt capacities.
• Compatible with our custom controls for largerscale residential or commercial use.
• Choose from brushed stainless steel, standard colors, or custom color finish options.

Manuals

• Comfort Heat Catalog for Infratech WD-5024 39-inch Stainless Steel All-Weather Dual Element Heater - 240V
• Installation Guide for Infratech WD-5024 39-inch Stainless Steel All-Weather Dual Element Heater - 240V
• Heater Drawing for Infratech WD-5024 39-inch Stainless Steel All-Weather Dual Element Heater - 240V

Specifications

• Part No.: 21-2200
• Model: WD-5024
• Length: 39"
• Watts: 5000

• Volts: 240
• Amps: 20.8
• BTU's: 17060
• Ship Weight: 14 lbs.

Coverage Area

• Different spaces have different needs. You may require multiple heaters in order to properly heat the areas noted below. Contact us to learn which model is right for you. To find out more about which heating solution is right for your needs, our pleasure to help you.

• WD-30  7' x 7' (ft) - 7' - 8' mounting height
• WD-40  8' x 10' (ft) - 8' - 10' mounting height
• WD-50  9' x 10' (ft) - 8' - 10' mounting height
• WD-60  11' x 11' (ft) - 8' - 12' mounting height

Mounting Options

• Our low profile heaters are suitable for outdoor installations and offer a pleasing, streamlined look due to low clearance requirements. Infratech heaters may be flush mounted into a non-sloped ceiling using our optional flush mount frame, or may be mounted to a wall, ceiling or pole mounted. WD-Series heaters are ideal for flush mount applications.

Control Options

Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.

• Duplex/Stack Switch

• Solid State Control Packages

• Home Management Systems

• Universal Control Packages
